10位旋转编码开关 实码 贴片型 螺丝刀操作
规格参数
最大额定值 : 50VDC,100mA
接触电阻: 100mΩ Max.
绝缘电阻: 100VDC-1000MA Min.
绝缘耐压 : 250VAC-1分种
扭力: 40~200gf.cm
总旋转角度 : 360° (10STEPS)
寿命: 10,000次
操作柄类型:Type1,螺丝刀操作
编码数:10位
编码类型:实码
端子类型:SMT(贴片)

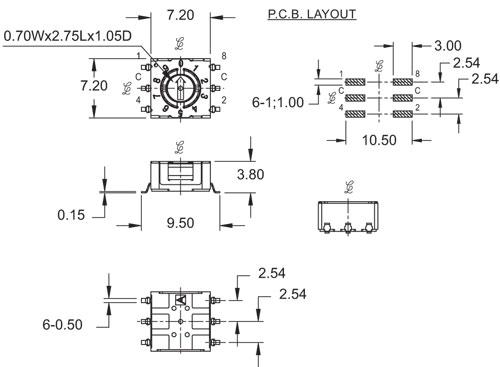

RSC-1ARM外形尺寸：
RSC-1ARM线路图
| CODE | ||||||
| C | 1 | 2 | 4 | 8 | ||
|
POSITIONS |
0 | ● | ||||
| 1 | ● | ● | ||||
| 2 | ● | ● | ||||
| 3 | ● | ● | ● | |||
| 4 | ● | ● | ||||
| 5 | ● | ● | ● | |||
| 6 | ● | ● | ● | |||
| 7 | ● | ● | ● | ● | ||
| 8 | ● | ● | ||||
| 9 | ● | ● | ● | |||
